Extruded Aluminum Box

TYPES OF EXTRUDED ALUMINUM BOX

Extruded Aluminum Box are primarily categorized into the following four types:

Profile Enclosures
Features: The most common type, resembling long aluminum rails that are cut to length as needed.
As a primary advantage, the design is highly flexible, allowing for integrated features, for instance, card slots and cooling fins.Applications: Used in various equipment chassis, frames, and protective covers.

Frame-style Enclosures
Features: Constructed by assembling U-shaped or L-shaped profiles into a rectangular frame, offering robust structure.
Advantages: Neat internal layout, easy installation, and aesthetically pleasing appearance.
Applications: Ideal for instrumentation and industrial control equipment.

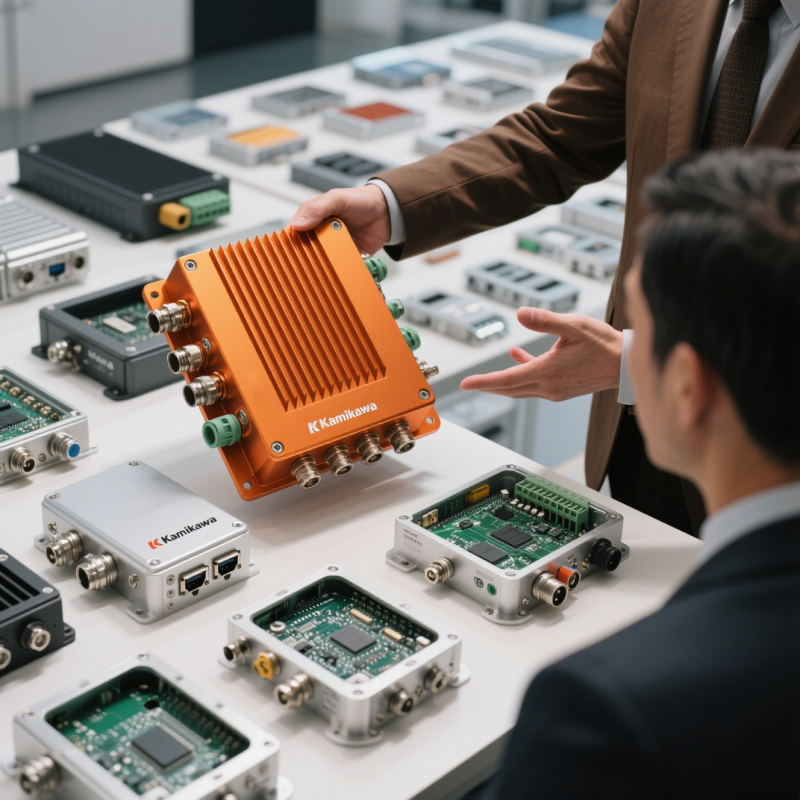

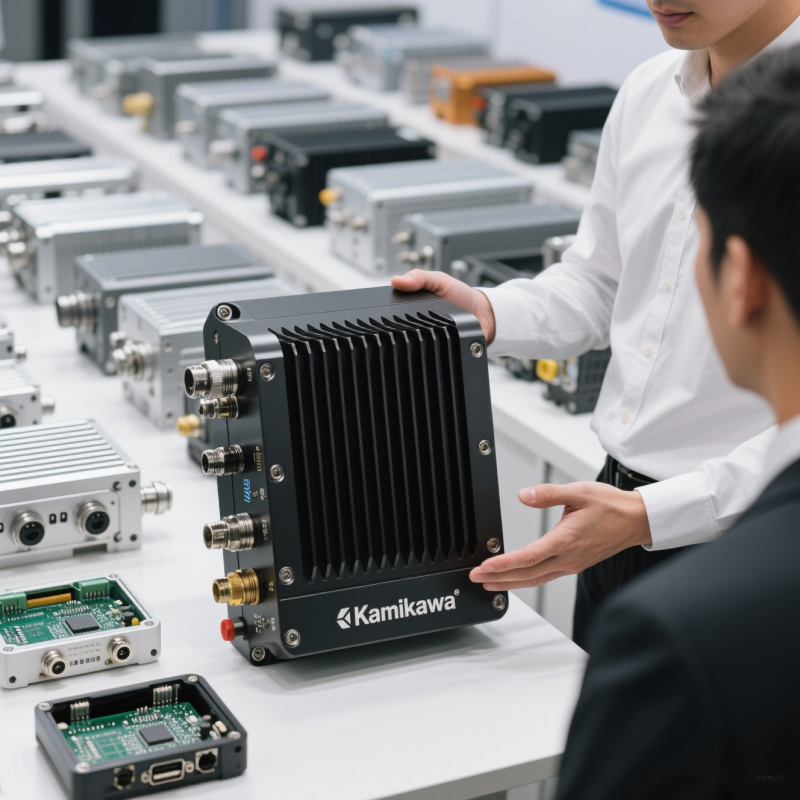

Heat Sink Enclosures
Features: Designed with integrated, dense cooling fins directly on the enclosure body.
Advantages: Provide efficient, unified cooling in a compact structure.
Applications: Suitable for high-power LED lights, power supplies, and amplifiers.

Modular Enclosures
Features: Composed of multiple standardized components that can be assembled like building blocks.
Advantages: Offer flexible sizing and configuration, ideal for custom solutions.
Applications: Perfect for laboratory equipment and custom chassis.

We offer over 300 different specifications of aluminum alloy profiles to choose from. No additional mold costs are required; there's always one suitable for your product.

EXTRUDED ALUMINUM BOX MANUFACTURING PROCESS

Extruded Aluminum Box are manufactured through a precise, multi-step process that ensures structural integrity and a high-quality aesthetic finish.

1. Die Design & Preparation
A precision steel die is machined to the exact profile of the desired cross-section. This foundational step defines the enclosure's final shape.2. Billet Heating
An aluminum alloy billet is heated in an oven to approximately 400-500°C, making it pliable for extrusion.3. Extrusion
The heated billet is forced through the die using a hydraulic ram. The aluminum emerges as a continuous profile, which is guided along a run-out table.4. Quenching & Cooling
The profile is rapidly cooled by fans using air or water. This quenching process locks in the metallurgical structure and enhances the material's strength.5. Stretching & Straightening
The cooled profile is stretched to correct any twisting or bowing, ensuring dimensional accuracy and straightness.6. Cutting to Length
The continuous profile is cut into specific, manageable lengths using a flying saw.
7. Heat Treatment (Aging)
The cut lengths are artificially aged in an oven. This precipitation hardening process optimizes the aluminum's mechanical properties.
8. Surface Finishing
Anodizing: This common finish creates a hard, corrosion-resistant oxide layer that also serves as an electrical insulator, available in various colors.
Powder Coating: A thick, durable polymer coating is applied, offering excellent wear and weather resistance for decorative and protective purposes.
9. Fabrication & CNC Machining
Final components are machined by CNC systems to add holes, threads, slots, and other features required for assembly and component installation.

EXTRUDED ALUMINUM BOX CNC MACHINING

Material Selection & Preparation: We select high-grade aluminum blanks, typically 6061 or 6063, for optimal machinability and strength. Operators then securely clamp the raw material onto the CNC machine bed.

CAD/CAM Programming: Engineers translate a 3D CAD model into machine instructions (G-code) via CAM software. This process defines toolpaths, cutting speeds, feed rates, and depth of cuts for the entire operation.

Machining Process: The CNC machine executes a series of precision operations:

• Facing: Creates a flat reference surface.

• Milling: Shapes the external profile and internal cavities.

• Drilling & Tapping: Produces holes and threads for fasteners and components.

• Deburring & Finishing: Technicians meticulously remove sharp edges and burrs. We can then apply surface treatments (e.g., anodizing, sandblasting) to enhance corrosion resistance and aesthetics.

Quality Inspection: Inspectors rigorously check the final enclosure using precision instruments like CMMs. This verifies critical dimensions and ensures compliance with design specifications.

ALUMINUM EXTRUSION ENCLOSURE customization

/

/

Custom aluminum extrusion enclosure offer tailored solutions for electronics, industrial equipment, and energy systems. Their key advantages include:

• Perfect Fit – Custom designs ensure optimal dimensions for components, maximizing space efficiency and functionality.
• Superior Heat Dissipation – Integrated cooling fins or vents enhance thermal management, protecting sensitive electronics.
• Lightweight & Durable – Aluminum provides strength without excess weight, reducing shipping costs while maintaining robustness.
• Corrosion Resistance – Anodized or powder-coated finishes protect against harsh environments.
• Design Flexibility – Custom extrusions allow unique shapes, mounting points, and cable openings for seamless integration.
• Cost-Effective Production – Extrusion tooling is affordable for custom profiles, with lower per-unit costs at higher volumes.
• EMI Shielding – Custom designs can include features to block electromagnetic interference.
• Eco-Friendly – Aluminum is 100% recyclable, supporting sustainable manufacturing.
• Ideal for specialized applications, custom aluminum enclosure combine precision, performance, and value.

CNC MACHINING FOR ALUMINUM ENCLOSURE

At Kamikawa Precision, we specialize in high-precision CNC machining of aluminum enclosure, delivering superior quality with unmatched efficiency. With over 120 advanced CNC machines operating daily, we produce approximately 2,000 finished enclosure per day—without the need for expensive molds or long lead times.

Why Choose CNC Machining?

CNC machining offers unparalleled flexibility for prototyping and mass production. Unlike traditional methods that require costly tooling, our CNC processes eliminate mold expenses, allowing for rapid design changes and shorter time-to-market. Whether you need a single prototype or high-volume production, we deliver consistent precision with tight tolerances (±0.01mm) and flawless surface finishes.

Our Manufacturing Advantages

• No Mold Costs – Save time and money with our direct CNC machining approach.
• Rapid Turnaround – From design to delivery, we ensure fast production without sacrificing quality.
• Scalable Capacity – With 120+ CNC machines, we handle both small and large orders efficiently.
• Material Expertise – We work with high-grade aluminum (e.g., 6061, 7075) for lightweight yet durable enclosure.

Quality Control You Can Trust

Every enclosure undergoes rigorous inspections, including:

• Dimensional accuracy checks (CMM & optical measurement)
• Surface finish verification (Ra < 0.8μm upon request)
• Pressure testing & leak-proof validation (for sealed enclosure)

Engineering Excellence

Our team of skilled mechanical engineers ensures optimal manufacturability, offering:

• Design for Manufacturing (DFM) feedback to reduce costs and improve functionality.
• Complex geometry capabilities – intricate cuts, threads, and cavities with precision.
• Custom finishes – anodizing, powder coating, laser engraving, and more.

WATERPROOF ELECTRONIC ENCLOSURE APPLICATION

/

✅Superior Durability – Resists corrosion, impacts, and extreme temperatures, extending device lifespan.
✅Excellent Waterproofing – IP67/IP68-rated seals prevent moisture, dust, and chemical ingress.
✅Heat Dissipation – Aluminum’s thermal conductivity prevents overheating, maintaining optimal performance.
✅Lightweight & Strong – Provides robust protection without adding excessive weight.
✅EMI Shielding – Reduces electromagnetic interference, crucial for sensitive electronics.
Applications:
✅Industrial Controls – Protects PLCs and sensors in wet or dusty factories.
✅Outdoor Electronics – Safeguards surveillance cameras, LED displays, and solar inverters.
✅Marine & Automotive – Shields navigation systems and EV components from water and salt corrosion.
✅Medical Devices – Ensures sterile, moisture-free Enclosure for diagnostic equipment.
✅Telecommunications – Protects 5G Base Station and routers in extreme weather.
By combining rugged protection with efficient heat management, aluminum alloy enclosure ensure electronics operate reliably for years.
